Heavy Duty Huge Capacity 8x4 Drive Six Seats Fire Fighting Truck Firefighter Truck

Heavy Duty Huge Capacity 8x4 Drive Six Seats Fire Fighting Truck Firefighter Truck

  • High Light

    fire tender vehicle


    pumper fire truck

  • Size
    11425×2500×3860 Mm
  • G.V.W
    39250 Kg
  • Wheelbase
    1700+4300+1350 Mm
  • Drive Type
  • Seats
  • Max. Power
    440 Kw
  • Cabin
    Two Rows
  • Other Names
    Firefighter Truck, Heavy Duty Fire Truck
  • Place of Origin
  • Brand Name
    CIMC Tianda
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
  • Packaging Details
    exporting standard package or customized packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

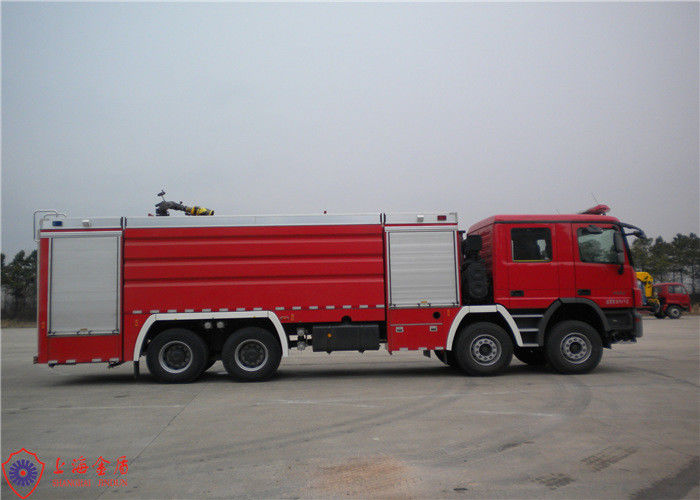

Heavy Duty Huge Capacity 8x4 Drive Six Seats Fire Fighting Truck Firefighter Truck

8X4 Drive Heavy Duty Huge Capacity Six Seats Mercedes Chassis Foam Firefighting Truck, Firefighter Truck



Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .


1. Firefighter Vehicle

Dimension (L×W×H) 11425×2500×3860mm
Gross weight 39250kg
Complete vehicle shipping mass 19100kg
Seat (inc. driver) 6
Max. power 440kw


2. Firefighter truck Chassis

Manufacturer Diamler
Model Actros4160
Drive type 8x4
Cab double row, overturning type
Wheelbase 1700+4300+1350mm
Max. speed 100km/h
Min. turning diameter <27m
Approach angle 29°
Departure angle 11°
Engine type V type eight-cylinder, pressure combustion, four-stroke, inter-cooling.
Model OM502LA.IV/3
Max. power 440kw
Max. torque 2800N•m
Emission standard China IV/Euro IV
Clutch Monolithic, dry
Gearbox model Manual, 16 forward gear

4x 385/65R22.5

8x 315/80R22.5


3. Firefighter truck Cab

Structure Double row
Seat 2+4
Equipment Except the original equipments. There is a storage box with cover under the seat, embedded 4x9L air breathing apparatus fixed mount in the seats


4. Firefighter truck pedal plate

Location: At the bottom of roller shutter door.

Material: Steel frame covered by aluminum alloy checkered plate

Structure: adopt the gas springs plus shutter fasten, safe and

Reliable, each petal plate bearing ≥150Kg



Heavy Duty Huge Capacity 8x4 Drive Six Seats Fire Fighting Truck Firefighter Truck 0



1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.


2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.


3. Q:What's your payment method?

A: T/T and L/C are preferred.


4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.


5. Q: How is the packing?

A:All the packing comply with exporting standard.


6. Q: What's the delivery time?

A: 1) 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

2) ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

3) European brand chassis 9 months upon receipt of advance deposit.


7. Q: What's your main products?

A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general trucks. The products have been sold to more than 20 countries.



Any other questions, please do not hesitate to contact with us.
