ISUZU chassis 4x2 drive 22M Telescopic Boom Aerial Working Platform 90km/h speed 200kg load
7300kg 90km/h speed ISUZU chassis 4x2 drive 22M Telescopic Boom Aerial Working Platform 200kg load
A,Working Condition
1,Altitude: 0-1000m
2,Temperature: -25℃--+45℃, environmental relative humidity ≤90%
3,Allowed working condition: solid, stable land, the vehicle should be horizontal
4,Wind force: ≤6 degree (wind speed ≤12.5m/s)
B,Main Parameters
| Bulletin No. | KFM5075JGK | |
| Type | GKS-22Q | |
| External dimensions(mm) | 7150×2045×3550 | |
| Structure type | Four-section telescopic boom | |
| Working Cage | Internal size(mm) | 1000×650×1100 |
| Rated loading(kg) | 200(or 2 persons) | |
| Max. Working height(mm) | 22000 | |
| Max. Height from ground(mm) | 20300 | |
| Rotation angle(º) | Left 90 º, right 90 º | |
| Max. Working radius(mm) | 13400 | |
| Working radius when doing the highest height(mm) | 4190 | |
|
Working Boom |
Lifting angle(º) | -12~80 |
| Out rate speed(mm/sec) | 12360/70 | |
| Ret rate speed(mm/sec) | 12360/70 | |
| Boom rack rotation angle(º) | 360 | |
| Boom rack rotation speed(r/min) | 1.0 | |
| Outrigger |
) Vertical span(mm) |
4000 |
| Horizontal span(mm) | 4000 | |
| Traveling of vertical outrigger(mm) | 550 | |
| Adjustment | Single adjustable | |
C,Chassis Introduction
|
Traveling Performance Parameters |
Chassis model | ISUZU NKR77LLPACJAY (EN III) |
| Persons | 2 | |
| Axle base (mm) | 3360 | |
| Wheel base (front/rear)(mm) | 1504/1425 | |
| Driving mode | 4×2 | |
| Front suspension(mm) | 1015 | |
| Rear suspension(mm) | 2100 | |
| Approaching angle(º) | 24 | |
| Departure angle(º) | 12 | |
| Max. Grade ability(%) | 28 | |
| Min. Turning diameter(mm) | 13600 | |
| Min. Ground clearance(mm) | 190 | |
| Engine | Engine model | 4KH1-TC |
| Rated power(kw/r/min) | 96/3400 | |
| Torque(N,m/r/min) | 280/1700 | |
|
Max. Speed(km/h) |
90 | |
| Gas consumption per one hundred miles(diesel oil) (L) | 12 | |
| Specification of the tire | 7.50-15,7.50R15,7.00-16,7.00R16 | |
| The whole weight(kg) | 7170 | |
| Max. Weight with whole loading(kg) | 7300 | |
D,Equipments Introduction
1. ISUZU NKR77LLPACJAY
2. Working boom assembly
3. Rotation structure assembly
4. Body transformation assembly
5. Extending outrigger
6. Spare type & tool box

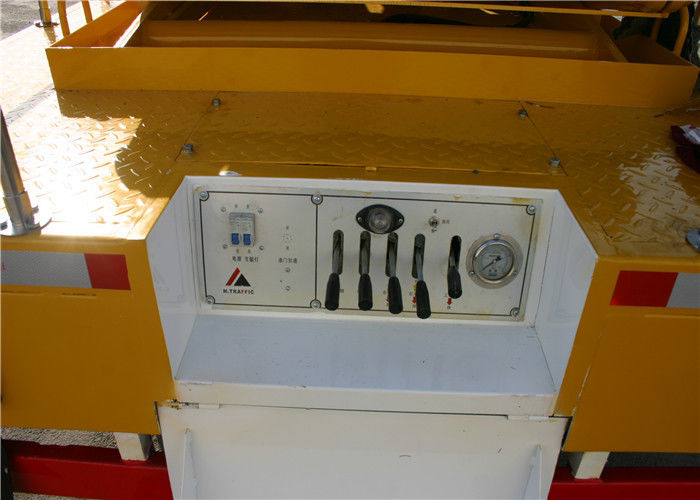

7. Hydraulic system assembly
8. Electric system assembly
9. Safety control system
10. Working cage assembly
11. Safety belt
12. Safety lift & Moving guard bar
13. Maintenance bag & tools
14. Safety warning & Light
15. Air- conditioning
16. Emergency pump device
