Powerful Custom Smoke Exhaust Fire Engine with Two Large Fans for Tunnel Rescue

Powerful Custom Smoke Exhaust Fire Engine with Two Large Fans for Tunnel Rescue

  • High Light

    fire tender vehicle

    ,

    pumper fire truck

  • Emission
    Euro 5
  • Chassis Weight
    9593 Kg
  • Drive Type
    6*4
  • Displacement
    12.419L
  • Wheel Base
    5100+1400 Mm
  • Maximum Torque
    2300N
  • Fans
    Two Are Big And Two Are Small
  • Application
    Tunnel Fire Fighting And Rescue
  • Product Name
    Custom Smoke Exhaust Fire Engine
  • Place of Origin
    shanghai,China
  • Brand Name
    MAN
  • Certification
    ISO9001/CCC
  • Model Number
    PY330M
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

Powerful Custom Smoke Exhaust Fire Engine with Two Large Fans for Tunnel Rescue

Powerful Custom Smoke Exhaust Fire Engine with Two Large Fans for Tunnel Rescue

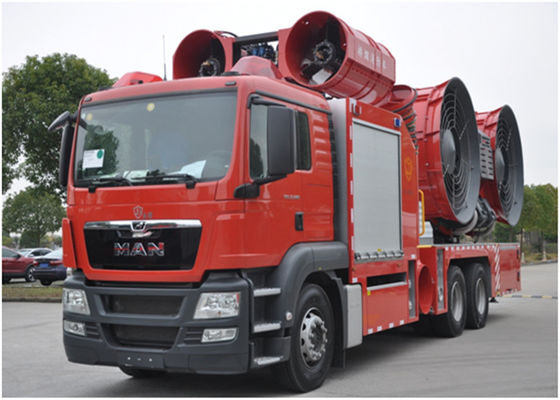

PY330M smoke exhaust truck is a large-power, large-volume and high-pressure smoke exhaust truck developed independently by our company in combination with different firefighting equipment requirements of the fire industry. It is used for air supply, smoke exhaust, cleaning, dust removal and cooling in tunnels and large fire sites. It consists of chassis, main air duct, secondary air duct, boom, engine, hydraulic system, transmission system and water pump system, and is equipped with positive and negative pressure air ducts of a certain length.



Chassis (original import)



Main specifications

Model TGS 33.480 6X4 BB
CCC model TGS 33.480
Drive type 6x4
Drive cab MAN TGS L Cab
Wheelbase 5100+1400 mm
Rear suspension 2750 mm
Maximum engine power 353 kW/480 HP (G5)



Load capacity

Items Values Remarks
Chassis weight 9,593 kg 4996+4597, this data is for reference only
Maximum allowable load 23,407 kg wheelbase 5,100 mm
Front axle allowable load 7,500 kg 7000 KG for record
Rear axle allowable load 26000KG 2x13, 000 kg
Vehicle allowable total weight 33,000 kg



Performance

Maximum Speed: 108 km/h (Electronic Speed Limiter 89 km/h)

Minimum turning diameter: 21.7M

Minimum ground clearance: 254 mm (front); 305 mm (back)



Powerful Custom Smoke Exhaust Fire Engine with Two Large Fans for Tunnel Rescue 0
