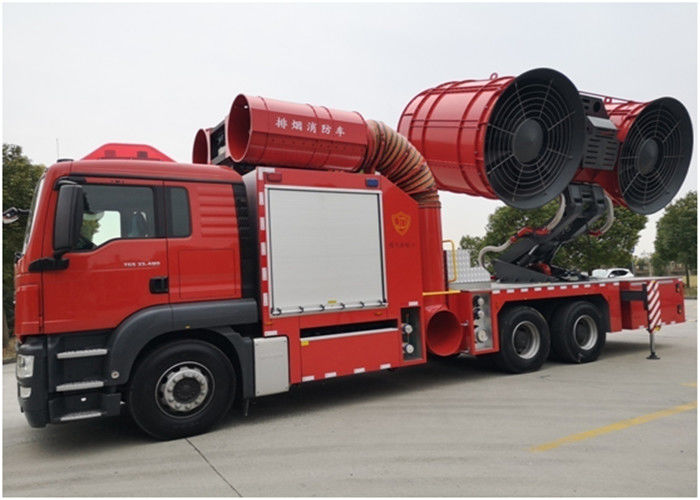

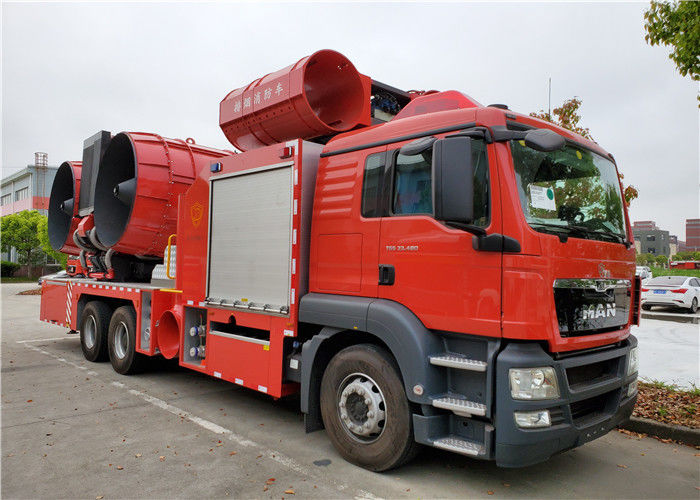

353 Kw 6×4 Drive Large-flow Air Supply & Smock Exhaust Fire Fighting Truck

353 Kw 6×4 Drive Large-flow Air Supply & Smock Exhaust Fire Fighting Truck

  • High Light

    fire tender vehicle

    ,

    pumper fire truck

  • Emission
    Euro 5
  • Chassis Weight
    9593 Kg
  • Drive Type
    6*4
  • Displacement
    12.419L
  • Wheel Base
    5100+1400
  • Maximum Torque
    2300N
  • Engine Power
    353 Kw
  • Rated Speed
    108 Km/h
  • Product Name
    Large-flow Air Supply Fire Fighting Truck
  • Place of Origin
    shanghai,China
  • Brand Name
    MAN
  • Certification
    ISO9001/CCC
  • Model Number
    PY330M
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

353 Kw 6×4 Drive Large-flow Air Supply & Smock Exhaust Fire Fighting Truck

353 Kw 6×4 Drive Large-flow Air Supply & Smock Exhaust Fire Fighting Truck



The vehicle adopts the latest TGS 33.4806X4BB national V chassis produced by German manufacturer, and carries a TCD2015 V8 turbocharged diesel engine manufactured by original imported Dowitz Company.



The product has a wide range of applications:

(1) large-scale cleaning operations;

(2) large-flow air supply and smoke exhaust;

(3) super-large air volume, super-high air pressure, effectively changing the direction of fire wind;

(4) providing large-scale cooling and dust removal in the fire field. It provides a strong guarantee for "extinguishing fires and rescuing catastrophes".



Main specifications

Model: TGS 33.480 6X4 BB

CCC model: TGS 33.480

Drive type: 6x4

Drive cab: MAN TGS L Cab

Wheelbase (mm): 5,100+1400

Rear suspension (mm): 2,750

Maximum engine power: 353 kW/480 HP (G5)



Load capacity

Items Values Remarks
Chassis weight 9,593 kg 4996+4597, this data is for reference only
Maximum allowable load 23,407 kg wheelbase 5,100 mm
Front axle allowable load 7,500 kg 7000 KG for record
Rear axle allowable load 26000KG 2x13, 000 kg
Vehicle allowable total weight 33,000 kg



Performance

Maximum Speed: 108 km/h (Electronic Speed Limiter 89 km/h)

Minimum turning diameter: 21.7M

Minimum ground clearance: 254 mm (front); 305 mm (back)



Cab

TGS L cab (narrow body, standard roof), 2,240 mm wide, 2,280 mm deep, fire-fighting red, high comfortable air spring main driver seat, front single and vice-driver seat, back berth. Qiz billion storage space, automatic temperature control environmental air conditioning system (R134A refrigerant, no Freon), vehicle multimedia (color screen + USB interface), central control door lock, two side electric windows, two side electric thermal rearview mirror, two side electric thermal wide-angle mirror, right electric thermal rearview mirror, right front view mirror, etc.
