200w Alarm 265kW 360hp 1900rpm Fire Fighting Truck

China Shanghai Jindun special vehicle Equipment Co., Ltd certification
I'm Online Chat Now

200w Alarm 265kW 360hp 1900rpm Fire Fighting Truck

200w Alarm 265kW 360hp 1900rpm Fire Fighting Truck
200w Alarm 265kW 360hp 1900rpm Fire Fighting Truck 200w Alarm 265kW 360hp 1900rpm Fire Fighting Truck 200w Alarm 265kW 360hp 1900rpm Fire Fighting Truck

Large Image :  200w Alarm 265kW 360hp 1900rpm Fire Fighting Truck

Product Details:
Place of Origin: shanghai,China
Brand Name: MAN
Certification: ISO9001/CCC
Model Number: JDX5180GXFAP12/MLG
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Money Gram
Supply Ability: 300 units/year
Detailed Product Description
Car Window: Electric Window Max. Power: 265kW(360hp)@1900rpm
Cab: TGSM Standard Seat: 2+8
Copilot’s Seat: Single Adjustable Seat Dimension: 9850×2500×3200
High Light:

1900rpm Fire Fighting Truck

,

265kW Fire Fighting Truck

,

360hp Fire Rescue Vehicles

Fold time of rail wheel ≤60 Road-rail due use fight trucks MAN chassis





Additional appliance

Tail search light: remote control search light

Lifting lighting device: 24VX300W,LED lifting light

Radio station and GPS reserved interface: reserved 12V power interface, radio station and the GPS unit position

On both sides of the top equipped with stroboscope lamp (red and blue LED)

On both sides of the top equipped with floodlight

Main alarm lamp: On the top of the cab, long lamp with shelter-clad

Alertor: 200w electronic alarm, continuous frequency modulation

Reverse monitor system: 5.6’’ color monitor

Charging unit: set AC220V recharge socket at the rear (or as customer’s requirement)



Chassis

Model

TGS18.360

Manufacturer

MAN

Cab

TGSM standard cab

Seat

6

Driver’s seat Comfortable air springs seat
Copilot’s seat Single adjustable seat

Air-condition

Automatic temperature control system(R134A refrigerant, Freon-free)
Car window Electric window
Rearview mirror Electric heating

Traction system

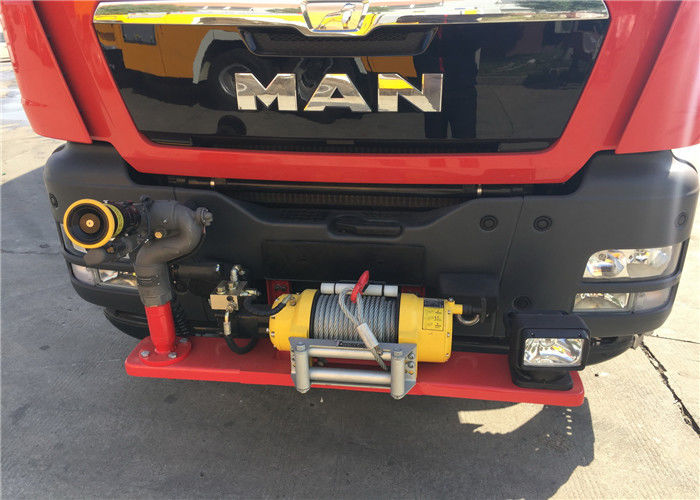

Winch



Position

Head stock
Brand

T-MAX

Model

CHW22500

Type Hydraulic
Max. traction force

50kN

Hauling cable length

28m

Hauling cable diameter

φ14mm

Hauling hook position Trail
Hauling hook type Match with subway cars hauling hook, impact autolock, no need to get off the car to operate
