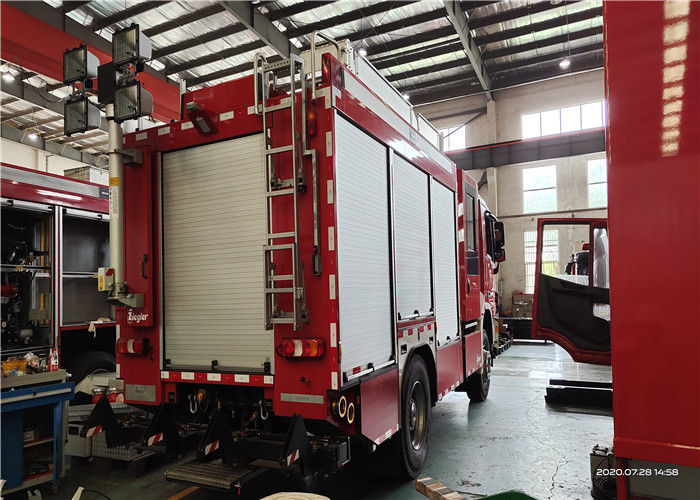

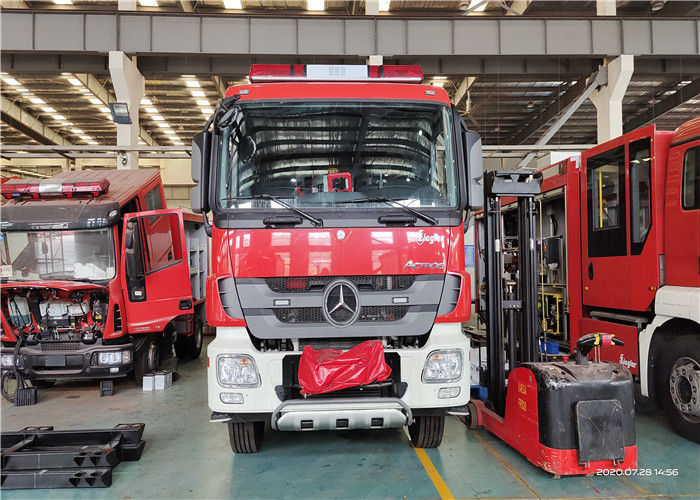

4x2 Gasoline Emergency Fire and Rescure Truck with 6 Crew seats

4x2 Gasoline Emergency Fire and Rescure Truck with 6 Crew seats

  • High Light

    4x2 Emergency Rescue Vehicle

    ,

    100km/h Emergency Rescue Vehicle

    ,

    214kw Emergency Rescue Vehicle

  • Gross Weight
    14900 (kg)
  • Max. Speed
    100km/h
  • Shipping Mass
    14450 (kg)
  • Equipment No.
    100pcs
  • Max. Power
    214kw
  • Seats
    6
  • Wheelbase
    4500 (mm)
  • Chassis Weight
    5170Kg
  • Product Name
    Fire And Rescue Truck
  • Place of Origin
    shanghai China
  • Brand Name
    BENZ
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5150TXFJY100/B
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

4x2 Gasoline Emergency Fire and Rescure Truck with 6 Crew seats

4x2 Gasoline Emergency Fire and Rescure Truck with 6 Crew seats 12250 KG Vehicle Kerb Mass



Generator:

  • Model: Gasoline generator ET12000 (Honda power)
  • Rated output power(kVA): 10(Three-phase),2.7kVA×3(Single-phase)
  • Maximum output power(kVA): 11(Three-phase),3.0kVA×3(Single-phase)
  • Power factor: 0.8
  • Voltage(V): 380/220
  • Electric current(A): 11.6A×3(Single-phase),14.4A
  • Frequency(HZ): 50
  • Fuel: Gasoline
  • Continuous working time(hr): 6.5
  • Lifting lighting system:
  • Manufacturer: Zhejiang SENKEN
  • Model: SG 65-41000G
  • Lifting height: 6.5M
  • AGL: ≥7.6m
  • Control system voltage: DC24V
  • Lamp voltage: 220V
  • Lamp power: 4 × 1000W
  • Lamps horizontal rotation angle: 380 °
  • Lamps vertical rotation angle: 330 °
  • Lamp luminous flux: 220000lm





Side girder Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
