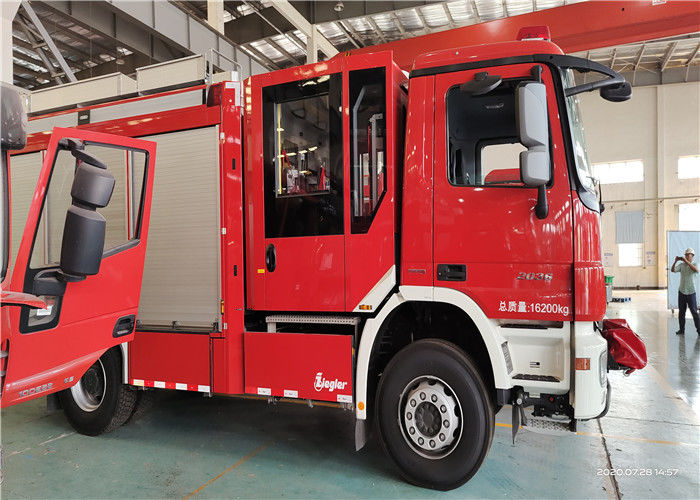

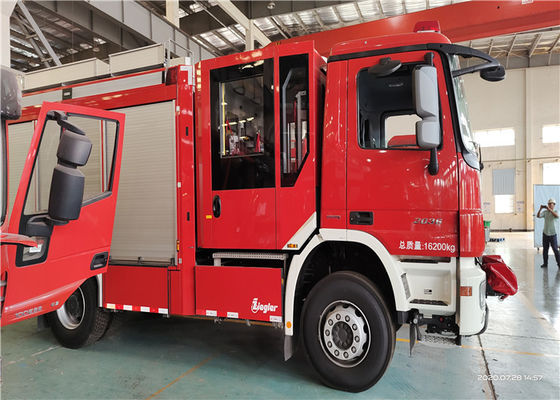

Gasoline Rear Mounted 100km/H 214kw Rescue Fire Truck

Gasoline Rear Mounted 100km/H 214kw Rescue Fire Truck

  • High Light

    100km/H Rescue Fire Truck

    ,

    214kw Rescue Fire Truck

    ,

    4x2 Gasoline Emergency Rescue Vehicle

  • Gross Weight
    14900 (kg)
  • Max. Speed
    100km/h
  • Shipping Mass
    14450 (kg)
  • Equipment No.
    100pcs
  • Max. Power
    214kw
  • Drive
    4x2
  • Wheelbase
    4500
  • Chassis Weight
    5170Kg
  • Place of Origin
    shanghai China
  • Brand Name
    BENZ
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5150TXFJY100/B
  • Minimum Order Quantity
    1unit
  • Price
    negotiable
  • Delivery Time
    90days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300units/year

Gasoline Rear Mounted 100km/H 214kw Rescue Fire Truck

China Ⅳ Emission standard rescue Fire Truck rear mounted four with air breathing aircraft







Generator:

Model: Gasoline generator ET12000 (Honda power)

Rated output power(kVA): 10(Three-phase),2.7kVA×3(Single-phase)

Maximum output power(kVA): 11(Three-phase),3.0kVA×3(Single-phase)

Power factor: 0.8

Voltage(V): 380/220

Electric current(A): 11.6A×3(Single-phase),14.4A

Frequency(HZ): 50

Fuel: Gasoline

Continuous working time(hr): 6.5

Lifting lighting system:

Manufacturer: Zhejiang SENKEN

Model: SG 65-41000G

Lifting height: 6.5M

AGL: ≥7.6m

Control system voltage: DC24V

Lamp voltage: 220V

Lamp power: 4 × 1000W

Lamps horizontal rotation angle: 380 °

Lamps vertical rotation angle: 330 °

Lamp luminous flux: 220000lm

Truck Cranes

Manufacturer: Finland (HIAB) Company

Model HIAB 111 B-2CLX type

Lifting capacity: 9.9tm

Rotary torque: 14.1KN.m

Rotation angle: 406 ° (rear side of safe operating range 180 °)

Outrigger span: 4.8 m

Crane weight: 1480 kg



Equipment boxes:

Material: Q235A combination of high-quality aluminum alloy steel.

Structure: welding, lap structure, skin, floor, interior panels use rust-proof aluminum plane, pedal tread surface, car roof using aluminum patterns.

Equipment compartment door: the light quality aluminum alloy, with shutter doors, lightweight and reliable.

Internal structure: the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level. The picture shown in the picture is a reference picture of the equipment used for all types of equipment (as per the actual equipment).
