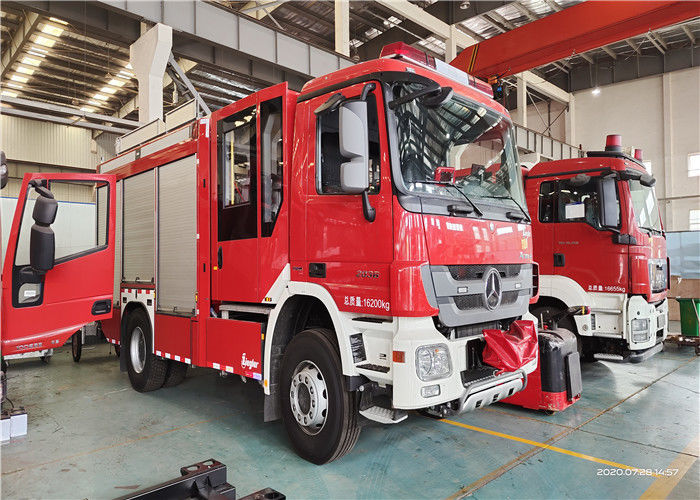

4x2 Drive 214kw 100km/H Emergency Rescue Fire Fighting Vehicle with Independent Cab

Generator:

Model: Gasoline generator ET12000 (Honda power)

Rated output power(kVA): 10(Three-phase),2.7kVA×3(Single-phase)

Maximum output power(kVA): 11(Three-phase),3.0kVA×3(Single-phase)

Power factor: 0.8

Voltage(V): 380/220

Electric current(A): 11.6A×3(Single-phase),14.4A

Frequency(HZ): 50

Fuel: Gasoline

Continuous working time(hr): 6.5

Lifting lighting system:

Manufacturer: Zhejiang SENKEN

Model: SG 65-41000G

Lifting height: 6.5M

AGL: ≥7.6m

Control system voltage: DC24V

Lamp voltage: 220V

Lamp power: 4 × 1000W

Lamps horizontal rotation angle: 380 °

Lamps vertical rotation angle: 330 °

Lamp luminous flux: 220000lm

Truck Cranes

Manufacturer: Finland (HIAB) Company

Model HIAB 111 B-2CLX type

Lifting capacity: 9.9tm

Rotary torque: 14.1KN.m

Rotation angle: 406 ° (rear side of safe operating range 180 °)

Outrigger span: 4.8 m

Crane weight: 1480 kg

Equipment boxes:

Material: Q235A combination of high-quality aluminum alloy steel.

Structure: welding, lap structure, skin, floor, interior panels use rust-proof aluminum plane, pedal tread surface, car roof using aluminum patterns.

Equipment compartment door: the light quality aluminum alloy, with shutter doors, lightweight and reliable.

Electrical System:

The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue), on both sides of the vehicle is provided with LED side lights installed below the rear side marker lamps, after the installation of the contour light.
