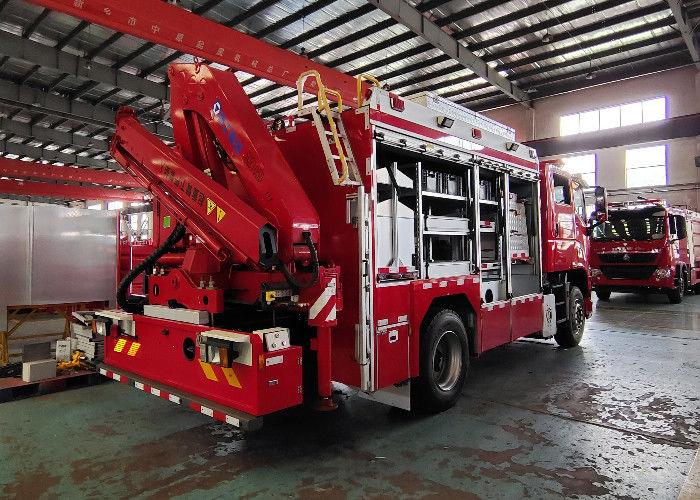

JDX5130TXFJY98 rescue fire truck adopts ISUZU QL1160AMFRY chassis, equipped with a 4X1000W lighting system, Honda ET12000 generator, Finland HIAB 111 B-2CLX cranes and emergency lighting equipment, vehicle structure and reasonable layout, convenient operation and maintenance, applicable to large and medium city public security fire brigade, petrochemical enterprises and airport fire brigade for emergency vehicle. Its shape, structure , the performance of the maintenance system to achieve the level of similar imported vehicles and life expectancy.
|Dimensions: length x width x height||8340×2460×3380 mm|
|The full authorized total mass||13000kg|
|Vehicle kerb mass||12550kg|
|The number of rescue equipment(pieces)||98|
|Crew number(including driver)||6|
|Maximum power||177/240 kw/hp|
|Cab||A modified (1+1+4), rear mounted four with air breathing aircraft|
|Maximum permissible load||16000Kg|
|Minimum turning diameter||＜15m|
|Engine||Straight column six cylinder, four stroke, water cooled, turbocharged engine.|
|Engine maximum power||177Kw/ 2400r/min|
|Emission standard||China Ⅳ|
|Clutch||Monolithic, dry, helical spring|
3. Lift lighting system:
Lift lighting electrical system by 13KW Honda generator, 4.0kW main lighting, 2X0.5KW mobile lighting lamps, raised about 8m (off) the pneumatic lift system, electrical control cabinet and other components.
|Model||Gasoline generator ET12000 (Honda power)|
|Rated output power||10 KVA(Three-phase),2.7kVA×3(Single-phase)|
|Maximum output power||11 KVA(Three-phase),3.0kVA×3(Single-phase)|
|Continuous working time||6.5 hours|
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
