8m Radius Fire Service Emergency Rescue Vehicle with 5.5 Meters Lifting Crane

8m Radius Fire Service Emergency Rescue Vehicle with 5.5 Meters Lifting Crane

  • High Light

    5.5m Lifting Fire Service Truck

    ,

    8m Radius Fire Service Truck

    ,

    4x2 Drive Fire Service Truck

  • Dimensions
    10720X2500X4000 Mm
  • Drive Type
    4×2
  • Rescue Equipment
    98 Units
  • Ladder Type
    Four Sections
  • Max Power
    177KW
  • Working Radius
    8 M
  • Max Speed
    100Km/h
  • Seat NO.
    6
  • Product Name
    Large Emergency Rescue Vehicle
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    CIMC
  • Certification
    ISO9001/CCC
  • Model Number
    JY100B
  • Minimum Order Quantity
    1 UNIT
  • Price
    Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

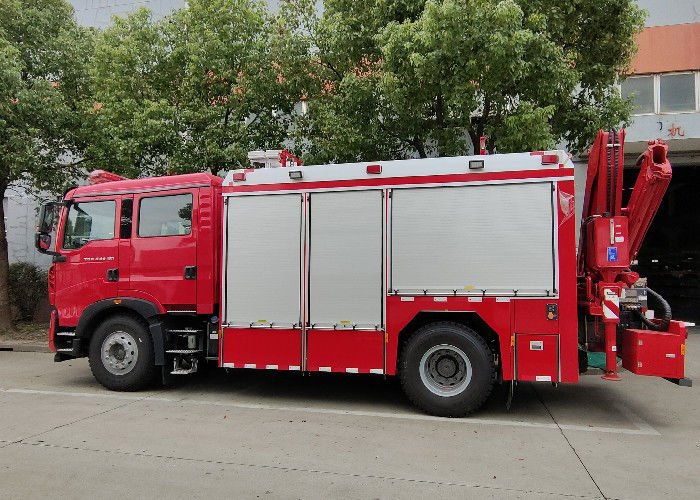

8m Radius Fire Service Emergency Rescue Vehicle with 5.5 Meters Lifting Crane

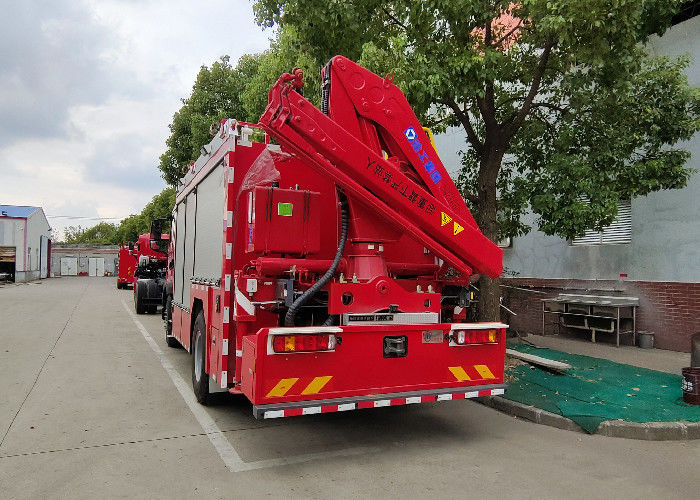

8m Radius Fire Service Emergency Rescue Vehicle with 5.5 Meters Lifting Crane

Chassis

Manufacturer Daimler
Model AXOR 1829
Drive type 4x4
Cab Crew cab
Wheelbase 4500mm
Max. loading weight 18000kg
Max. speed 100km/h
Min. turning diameter <16.5m
Engine type In-line six-cylinder, inter-cooling, direct injection
Model OM906LA.IV/3
Max. power 214kw
Max. torque 1120N.M
Emission standard China IV
Clutch Monolithic, dry
Gearbox model G131-9
Type Manual



Truck crane

Model HIAB 111 B-2CLX
Manufacturer Finland (HIAB) Company
Lifting capacity 9.9tm
Max. rated lifting weight 5000kg
Rotary torque 14.1kN.m
Rotation angle 406 ° (rear side of safe operating range 180 °)
Working radius 8m
Outrigger span 4.8m
Crane weight 1480kg



Equipment tank

Manufacturer SHANGHAI JINDUN
Material Q235A high quality steel combine aluminium alloy sections
Structure Welding, lap structure, skin, floor, interior panels use rust-proof aluminum plane, pedal tread surface, car roof using aluminum patterns.
Equipment compartment door the light quality aluminum alloy, with shutter doors, lightweight and reliable.
Internal structure the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level.




8m Radius Fire Service Emergency Rescue Vehicle with 5.5 Meters Lifting Crane 0


FAQ

1. Q: Why should we choose you ?

    A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

        b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

       c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.



2. Q:What's the delivery time?

    A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

        b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

        c. European brand chassis 9 months upon receipt of advance deposit.



3. Q:What's your payment method?

    A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

   A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

    A:All the packing comply with exporting standard.



6. Q:What's your main products?

    A:Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, pumper fire truck, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.



Any other questions, please do not hesitate to contact with us.
