Shanghai Jindun special vehicle Equipment Co., Ltd
Home ProductsEmergency Rescue Vehicle

Shanghai Jindun 30 Pieces Emergency Rescue Truck , 5 Person Fire Equipment Truck

China Shanghai Jindun special vehicle Equipment Co., Ltd certification
I'm Online Chat Now

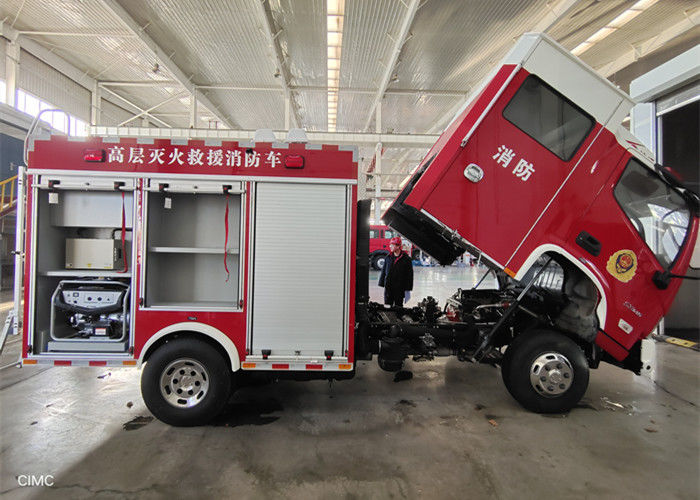

Shanghai Jindun 30 Pieces Emergency Rescue Truck , 5 Person Fire Equipment Truck

Shanghai Jindun 30 Pieces Emergency Rescue Truck , 5 Person Fire Equipment Truck
Shanghai Jindun 30 Pieces Emergency Rescue Truck , 5 Person Fire Equipment Truck Shanghai Jindun 30 Pieces Emergency Rescue Truck , 5 Person Fire Equipment Truck

Large Image :  Shanghai Jindun 30 Pieces Emergency Rescue Truck , 5 Person Fire Equipment Truck

Product Details:
Place of Origin: shanghai China
Brand Name: CIMC
Certification: ISO9001,CCC
Model Number: JY30
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: standard package for international export
Delivery Time: 180 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/year
Detailed Product Description
Dimensions: 6705×2200×3210mm Full Load Mass: 33000kg
Person: 6 Maximum Torque: 1390N•m
Drive Type: 4x2 Max. Speed: 100Km/h
Wheelbase: 4600mm Engine: 228kW
Voltage: 380VAC Poles: 4
High Light:

5 Person fire pumper truck

,

30 Pieces fire pumper truck

,

30 Pieces fire equipment truck



Shanghai Jindun 30 Pieces Emergency Rescue Truck

(5 Person Fire Equipment Truck)

Product Introduction:

The emergency rescue fire truck is reformed from TGM 18.290 chassis (National IV emission) produced by MAN Commercial Vehicle Co., Ltd. It is equipped with Hiab 122b-2clx truck mounted crane produced by Hiab company of Finland, m12000 winch produced by warn company of America, ns6.4-20-4000 lifting lighting system produced by WB company of America, eh3135 generator of Honda and other lighting and emergency equipment. It is suitable for public security fire brigade in large and medium-sized cities, petrochemical enterprises, airports and other professional fire brigade to deal with emergency. The shape, structure and performance of maintenance system of the whole vehicle meet the level and service life requirements of similar imported vehicles abroad.



Product Parameter

Chassis

Manufacturer MAN
Model TGM 18.290
Drive type 4x2
Cab Crew cab
Wheelbase 4425mm
Max. total mass 18000kg
Max. speed 96km/h
Min. turning diameter <15.6m
Engine type In-line six-cylinder, inter-cooling, high pressure common rail, electronic control
Model D0836LFL30
Max. power 213kw
Max. torque 1150N.M
Emission standard China IV
Gearbox model ZF 9S-1310 OD Manual

Lift lighting system

Manufacturer American WB imported with original packaging
Model NS6.4-20-4000
Above ground level 8m
Classification of wind resistance 110km/h(China level 11)
Lamps specification Quartz halogen lamp
Lifter material Maraging 6061 T6
Lamps power 4×1000w
Lamps horizontal rotating angle 360°
Lamps vertical rotating angle 360°
Lighting life ≥2000 hours
Illumination ≥86000lx
Contraction time ≤60S
Warranty period 2 years
Remote control type Drive by wire
Specialty Master reset function



Shanghai Jindun 30 Pieces Emergency Rescue Truck , 5 Person Fire Equipment Truck 0





Company Profile:

Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”



The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
