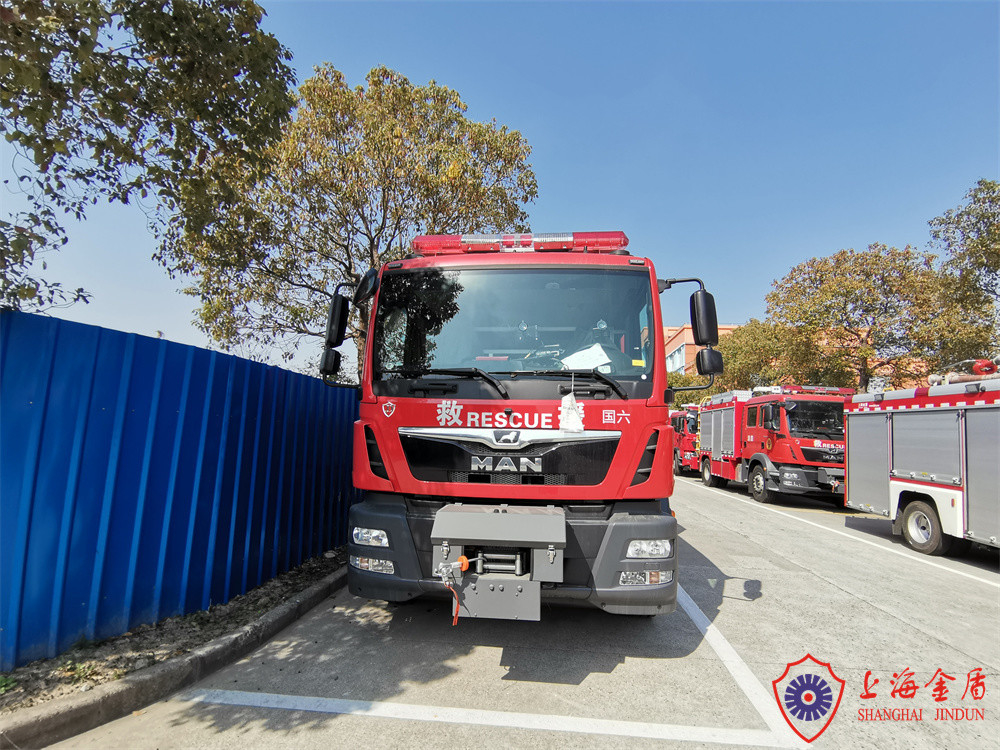

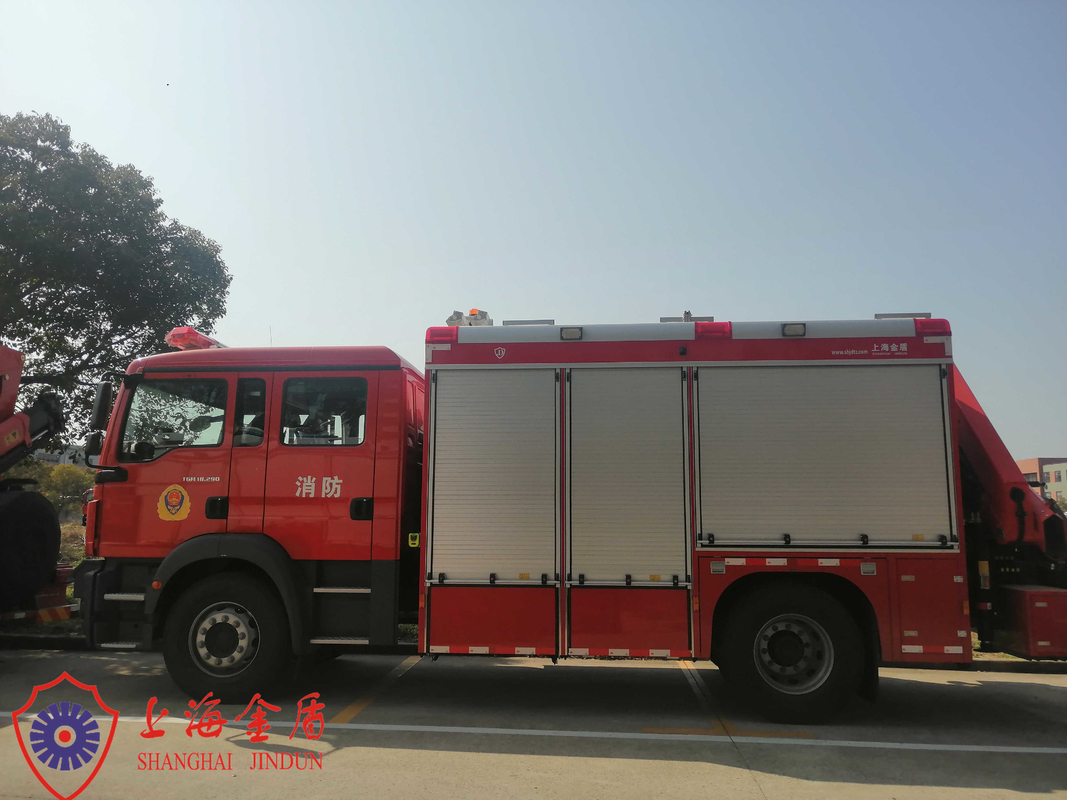

The JY100 chemical accidents rescue and salvage fire vehicle is adapted from MAN TGM 18.290 chassis. Equipped with US imported telescopic lifting lighting, HIAB truck crane and WARN traction winch. The vehicle structure and layout is reasonable, easy operation and maintaince, suitable for large and medium-sized city public security fire brigages, petrochemical enterprised and airport and other professional fire brigaded.
Vehicle
| Dimension (L×W×H) | 8655×2500×3500mm |
| Gross weight | 13065kg |
| Complete vehicle shipping mass | 12615kg |
| Rescue equipment quantity | 100pcs |
| Seat (inc. driver) | 2+4 |
Chassis
| Manufacturer | MAN |
| Model | TGM 18.290 |
| Drive type | 4x2 |
| Cab | Crew cab |
| Wheelbase | 4425mm |
| Max. total mass | 18000kg |
| Max. speed | 96km/h |
| Min. turning diameter | <15.6m |
| Engine type | In-line six-cylinder, inter-cooling, high pressure common rail, electronic control |
| Model | D0836LFL30 |
| Max. power | 213kw |
| Max. torque | 1150N.M |
| Emission standard | China IV |
| Gearbox model | ZF 9S-1310 OD Manual |
Lift lighting system
| Manufacturer | American WB imported with original packaging |
| Model | NS6.4-20-4000 |
| Above ground level | 8m |
| Classification of wind resistance | 110km/h(China level 11) |
| Lamps specification | Quartz halogen lamp |
| Lifter material | Maraging 6061 T6 |
| Lamps power | 4×1000w |
| Lamps horizontal rotating angle | 360° |
| Lamps vertical rotating angle | 360° |
| Lighting life | ≥2000 hours |
| Illumination | ≥86000lx |
| Contraction time | ≤60S |
| Warranty period | 2 years |
| Remote control type | Drive by wire |
| Specialty | Master reset function |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's your main product?
A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
Our products are sold all over the world, you can rest assured.
