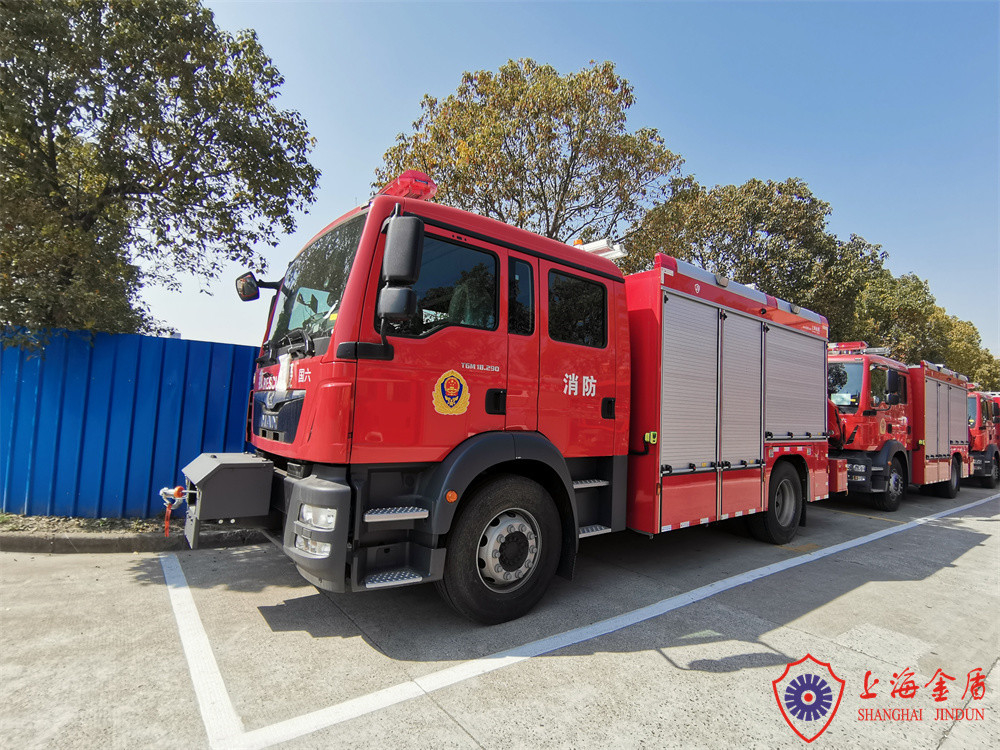

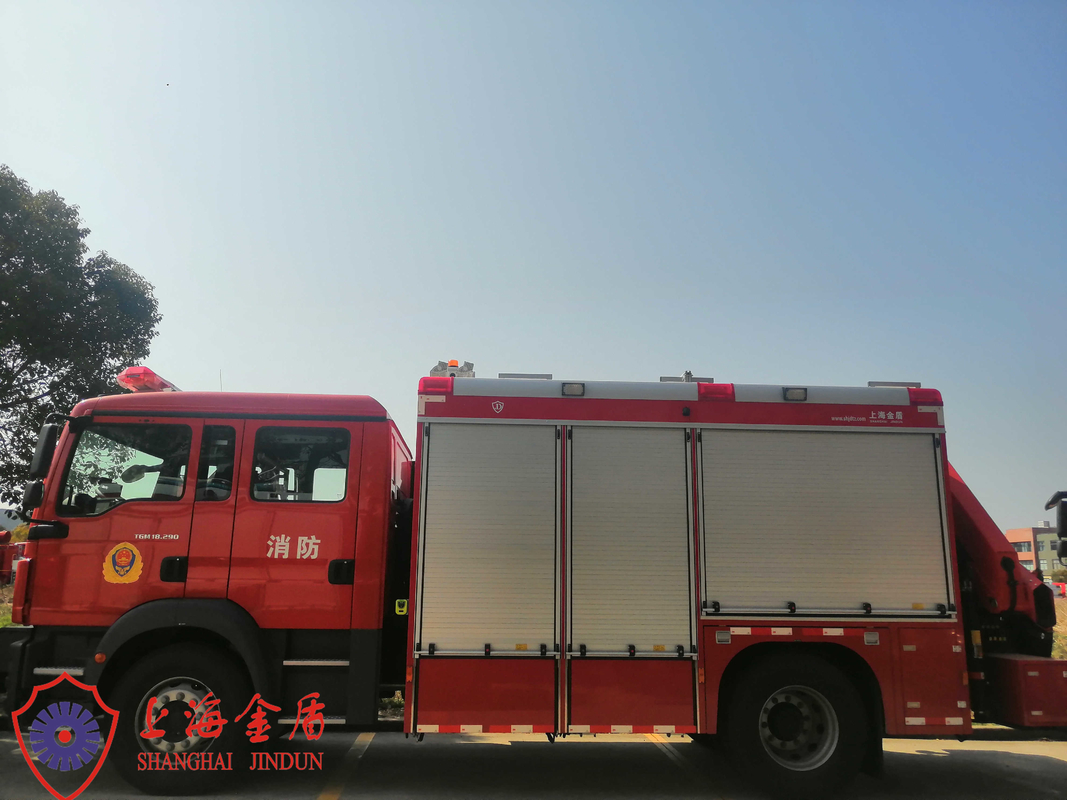

The JY100 chemical accidents rescue and salvage fire vehicle is adapted from MAN TGM 18.290 chassis. Equipped with US imported telescopic lifting lighting, HIAB truck crane and WARN traction winch. The vehicle structure and layout is reasonable, easy operation and maintaince, suitable for large and medium-sized city public security fire brigages, petrochemical enterprised and airport and other professional fire brigaded.
1. Vehicle
| Dimension (L×W×H) | 8655×2500×3500mm |
| Gross weight | 13066kg |
| Complete vehicle shipping mass | 12616kg |
| Rescue equipment quantity | 100pcs |
| Seat (inc. driver) | 2+4 |
2. Chassis
| Manufacturer | MAN |
| Model | TGM 18.290 |
| Drive type | 4x2 |
| Cab | Crew cab |
| Wheelbase | 4425mm |
| Max. total mass | 18000kg |
| Max. speed | 96km/h |
| Min. turning diameter | <15.6m |
| Engine type | In-line six-cylinder, inter-cooling, high pressure common rail, electronic control |
| Model | D0836LFL30 |
| Max. power | 213kw |
3. Lift lighting system
| Manufacturer | American WB imported with original packaging |
| Model | NS6.4-20-4000 |
| Above ground level | 8m |
| Classification of wind resistance | 110km/h(China level 11) |
| Lamps specification | Quartz halogen lamp |
| Lifter material | Maraging 6061 T6 |
| Lamps power | 4×1000w |
| Lamps horizontal rotating angle | 360° |
| Lamps vertical rotating angle | 360° |
| Lighting life | ≥2000 hours |
| Illumination | ≥86000lx |
| Contraction time | ≤60S |
| Warranty period | 2 years |
| Remote control type | Drive by wire |
| Specialty | Master reset function |
4. Side girder
Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
5. Electrical system
The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue), on both sides of the vehicle is provided with LED side lights installed below the rear side marker lamps, after the installation of the contour light.
