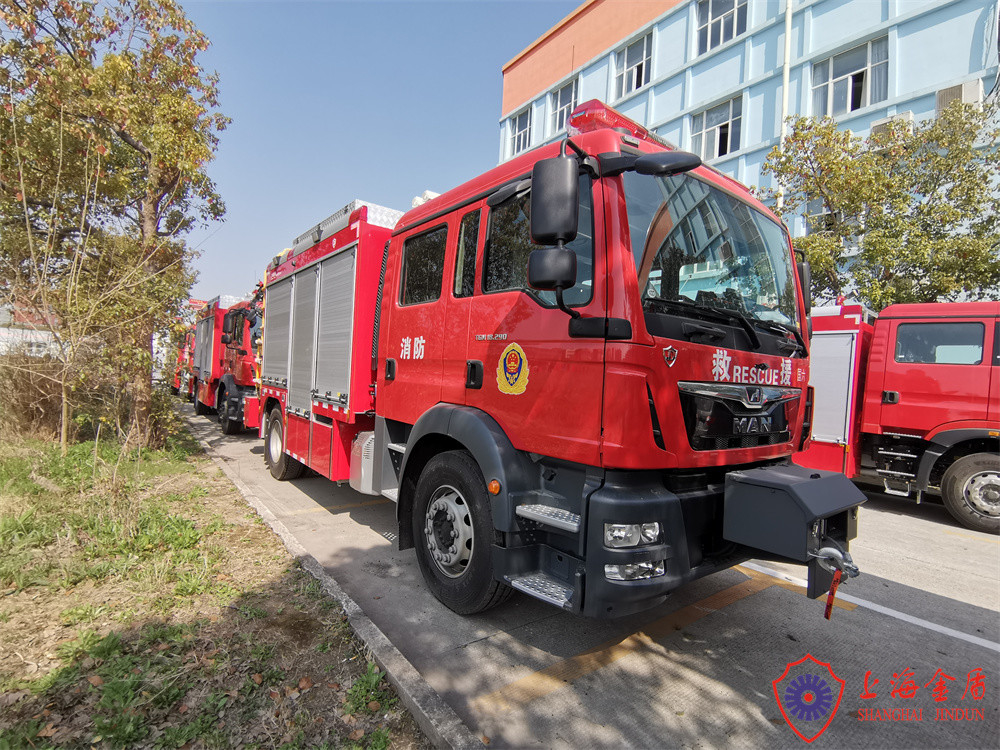

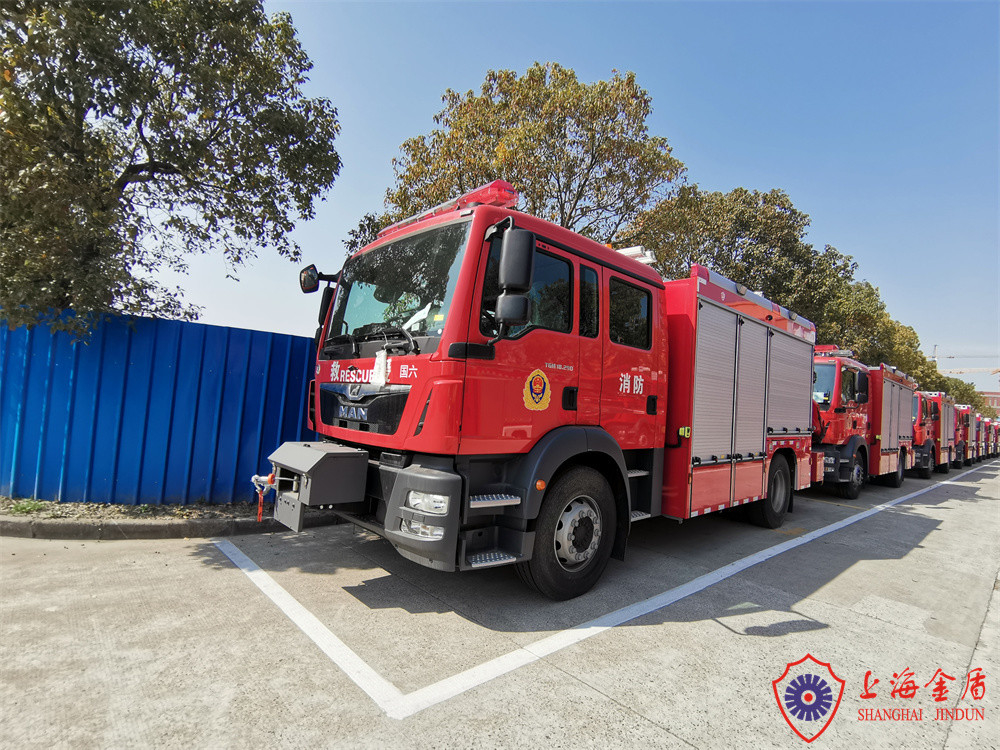

MAN Chassis 4x2 Drive 213Kw Emergency Rescue Firefighting Vehicle with Crane
The JY100 emergency rescue firefighting truck is a modified version of the TGM 18.290 chassis produced by MAN Commercial Vehicle Co., Ltd. The vehicle equipped with lighting and emergency equipment such as the HIAB truck-mounted crane, the WARN lift winch, the WB brand telescopic lifting lighting and the Honda generator.
The overall structure and layout of the vehicle are reasonable, easy to operate and maintain, and suitable for professional fire brigades in large and medium-sized cities, petrochemical enterprises, and airports, for handling emergency accidents. The overall design, structure, and maintenance system performance of the vehicle meet the level and service life requirements of similar imported vehicles from abroad.
Vehicle
| Dimension (L×W×H) | 8655×2500×3500mm |
| Gross weight | 13066kg |
| Complete vehicle shipping mass | 12616kg |
| Rescue equipment quantity | 100pcs |
| Seat (inc. driver) | 2+4 |
Chassis
| Manufacturer | MAN |
| Model | TGM 18.290 |
| Drive type | 4x2 |
| Cab | Crew cab |
| Wheelbase | 4425mm |
| Max. total mass | 18000kg |
| Max. speed | 96km/h |
| Min. turning diameter | <15.6m |
| Engine type | In-line six-cylinder, inter-cooling, high pressure common rail, electronic control |
| Model | D0836LFL30 |
| Max. power | 213kw |
| Max. torque | 1150N.M |
| Emission standard | China IV |
| Gearbox model | ZF 9S-1310 OD Manual |
Electric generator
| Model | EH3135 BINSON |
| Rated output power | 13.5kVA |
| Max. output power | 14.5kVA |
| Power factor | 0.8 |
| Voltage | 380/220V |
| Electricity current | 16.5A/per phase |
| Frequency | 50HZ |
| Fuel | Petrol |
Lift lighting system
| Manufacturer | American WB imported with original packaging |
| Model | NS6.4-20-4000 |
| Above ground level | 8m |
| Classification of wind resistance | 110km/h(China level 11) |
| Lamps specification | Quartz halogen lamp |
| Lifter material | Maraging 6061 T6 |
| Lamps power | 4×1000w |
| Lamps horizontal rotating angle | 360° |
| Lamps vertical rotating angle | 360° |
| Lighting life | ≥2000 hours |
| Illumination | ≥86000lx |
| Contraction time | ≤60S |
| Warranty period | 2 years |
| Remote control type | Drive by wire |
| Specialty | Master reset function |
